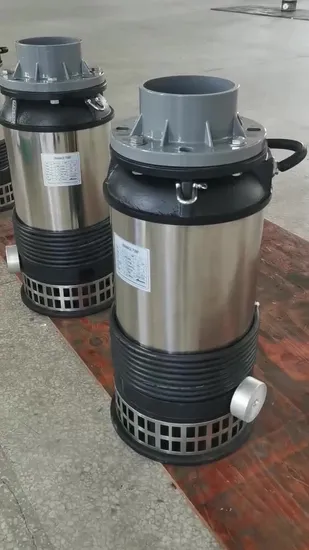

Stainless Steel Sewage Submersible Pump V1500f (WQ25

Basic Info.

Model NO.	V1500F
Power	Electric
Start Up	Electric Pump
Type	Blade Pump
Application	Submersible Pump, Sewage Pump
Industry	Sewage Pump
Media	Sewage Pumps
Performance	Sanitary Pumps
Theory	Mixed Flow Pump
Max Flow 47m3/H	Max Head 16m
Diameter 3inch	Power 1.5kw
Rated Flow 25m3/H	Rated Head 7m
V1500f	Wq25-7-1.5
Transport Package	Strong Carton
Specification	CE UL CCC ISO9001
Trademark	Xuje
Origin	China
HS Code	8413709190
Production Capacity	800PCS/Day

Product Description

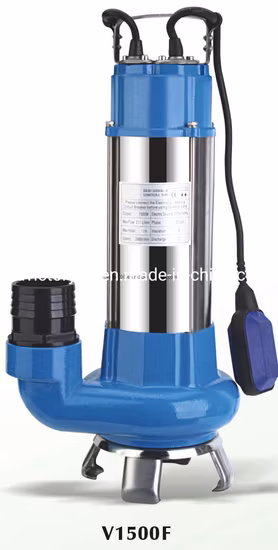

stainless steel pump (V-1500D(F))
Materials:
1) Pump body: Cast iron
2) Impeller: Cast iron
3) Motor housing: Stainless steel
4) Mechanical seal: Steel
5) Shaft: 45# steel / SS 420
6) Bearing: Steel
RANGE OF PERFORMANCE
Flow rate up to 47 m3/h
Head up to 16m
Power up to 1.5KW
With thermal overload protector.
LIMITS OF USE
Immersion depth up to 5 m
Liquid temperature up to + 40° C
The pH figure of the water is between 4~10
The maximum density of the trans medium is 1.2*103 kg/m3
APPLICATION
This pump with cutter is an ideal machine for draining sewage. A high speed rotating cutter is assembled at the inlet hole of the pump, make it easy to cut off long- fiber and firm sundries contained in the sewage. The float switch can automatically control on and off with the change of the liquid level. The protector in the motor can automatically cut off the power when it overheated or overloaded, thus guarantee the security and reliability of pump's run even in the atrocious environment.
Add to Basket

MODEL	POWER	VOLTAGE	MAX. FLOW	MAX. HEAD	OUTLET	GW	PACKING DIMENSION
WQ10-12-0.75	0.75kw	220/380V/50Hz/60HZ	170L/min	14m	1.5/2inch	21.5kg	280x210x570(mm)
WQ16-5-1.1	0.75kw	220/380V/50Hz/60HZ	400L/min	9m	1.5/2inch	22.5kg	280x210x570(mm)

Q1 What's the MOQ for your production?
A:The MOQ is 1 pcs/setQ2 Is it all right to make customer's own brand name?
A: Yes. In addition to the stable products,OEM & ODM accepted. Please contact us for details.
Q3 Are you a manufacture or trading company?
A: Our company is a professional manufacturer and trader that is concerned with the design,development
and production
Q4 What is your terms of payment?
A:Normally ,its 40% T/T as deposit ,and 60% before delivery. We'll show you the photos of the products and packages before pay the balance. Also L/C is acceptable.Q5 What is your terms of delivery?
A:EXW.FOB.CFR,CIFQ6 How about your delivery time?
A: After receive the deposit:
- Sample order:within 10-15 days;
- 20FT container: 20-25 days;
- 40HQ container: 30-35 days
Q7 Are you support samples?
A:Yes,We support.Q8.How about after-sales service?
A:1.About 1 year guarantee service. 2.English manual for installation & operation. 3.If required, we could send technicians for installation or by video to solve problem.
